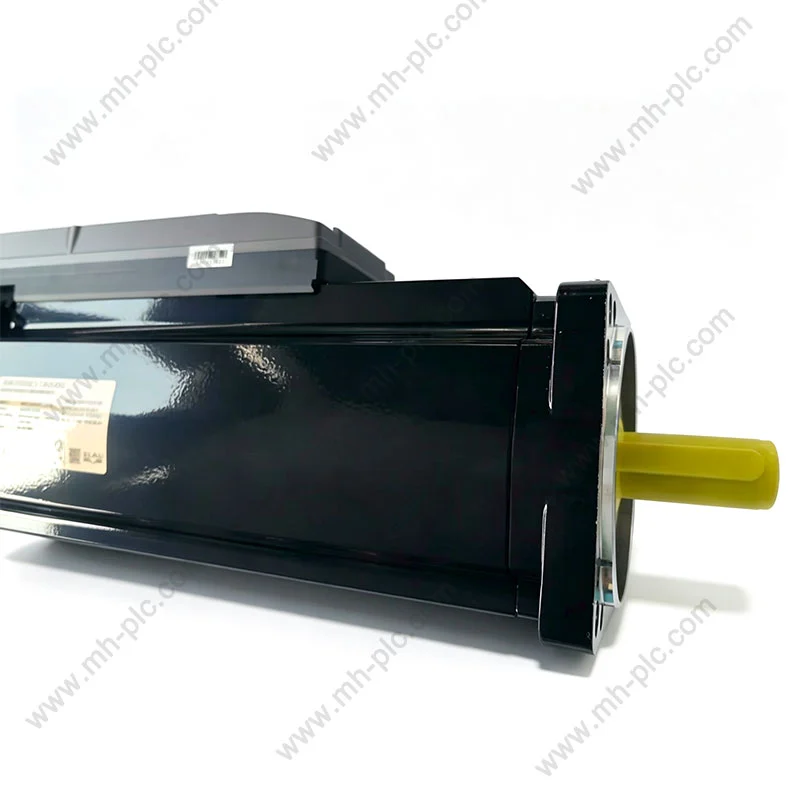

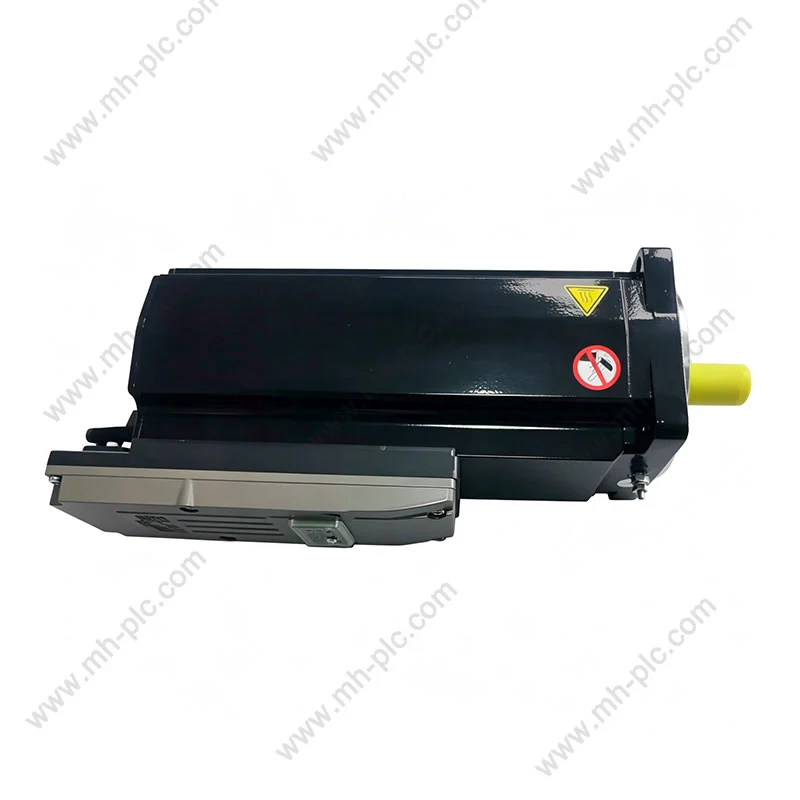

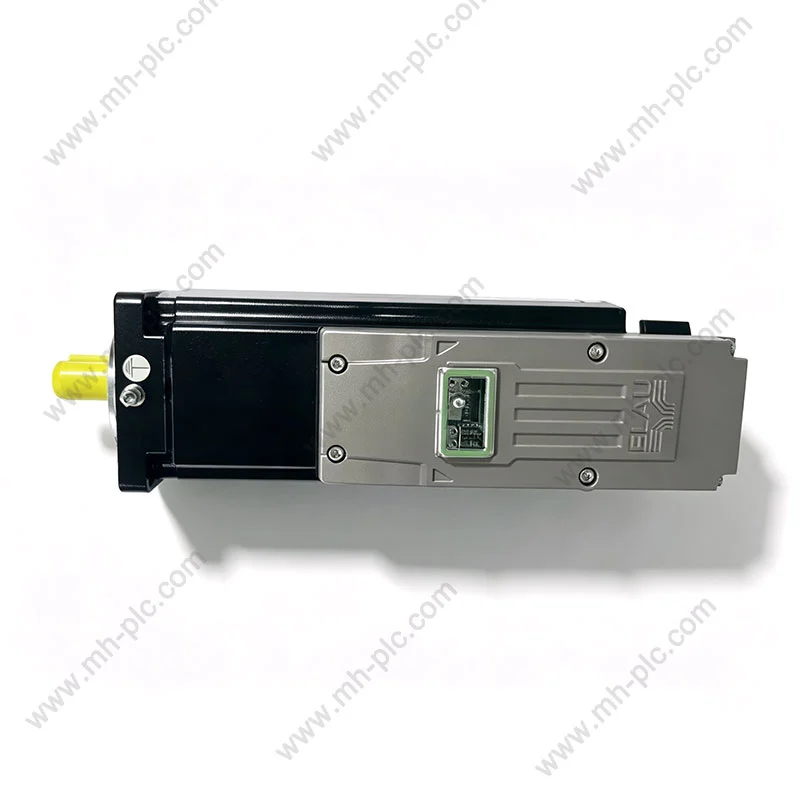

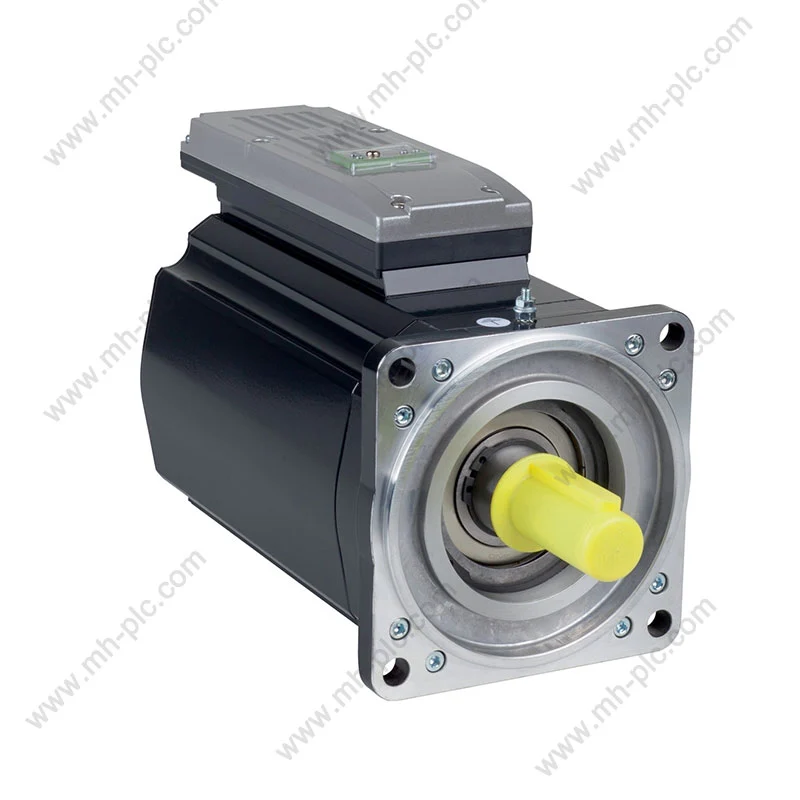

Schneider ILM0703P01A0000

The Schneider ILM0703P01A0000 offered by Mao Hui Machinery in China is an integrated servo motor on the Lexium ILM PacDrive3 platform. You can purchase it through Maohui. Our warehouse has both in-stock and a wide range of models. This product integrates the servo drive power module, encoder feedback, and motor body into a compact unit, eliminating the need for a separate drive cabinet, effectively reducing equipment assembly costs and space occupation.

Internal Structure

The Schneider ILM0703P01A0000 is a 720W integrated servo motor with a six-layer high-density stator design. The continuous locked-rotor torque is up to 2.2 Nm, and the peak torque can reach 8.7 Nm, suitable for high-speed rapid start and stop scenarios. Equipped with single-ring sine cosine Hiperface absolute value encoder (128 cycles per revolution), it can realize zero positioning at startup, significantly improving the start-up efficiency of the device. The wide voltage DC bus supports 250-700V, supports multi-axis synchronous control, and has wide compatibility with LMC100 and LMC200 PacDrive motion controllers. Additionally, China Maowei also provides brand-new original drive controllers from Schneider.

Model parameters

Product Advantages

As a professional supplier of automation equipment, the Schneider ILM0703P01A0000 product of Maohui adopts fanless natural convection cooling and has a shell protection grade of IP54. It is suitable for packaging machinery, handling equipment, printing automation, textile machinery and other industrial production lines. We provide 100% original and brand-new Schneider ILM servo motors. Before shipment, all technical tests are completed, and complete data manuals and export customs declaration documents compliant with CE/UL/RoHS standards are provided.

Product Categories and Quality Inspection Standards

China Maohui Machinery offers brand-new original Schneider ILM0703P01A0000 complete machines in stock. A complete set of quality inspection procedures is uniformly implemented: power-on function testing, encoder accuracy verification, rated load testing, long-term aging operation, fault parameter reset. Thorough screening is conducted to eliminate hidden defects and faulty returned machines. The delivered performance is close to the brand-new standard, and the machines can be directly put into production upon installation.

FAQ

Does ILM0703P01A0000 currently have stock available? How long does it take to ship?

Answer: We maintain a stable inventory on a long-term basis. Orders can be shipped within 24 hours. Large orders will be packaged and shipped within 3-5 working days. There is no need for a long overseas ordering process. Urgent orders can be given priority and processed more quickly.

What are the advantages of integrated servo motors compared to ordinary servo systems?

The biggest advantage of integrated servo motors is that they combine the driver and the motor, reducing the space required for the control cabinet and the complex wiring connections in traditional systems. For small automated equipment that requires multiple motion axes, the integrated solution can provide a more flexible design approach.

In which industries are they mainly applied?

Automatic assembly equipment;

Precise positioning mechanisms;

Automatic inspection equipment;

Industrial robot systems;

Intelligent handling equipment.

What kind of packaging is used?

In response to the transportation characteristics of industrial automation products, China Mawei Machinery adopts professional protective packaging methods, using shockproof and moisture-proof packaging, to reduce the risks brought by environmental changes during long-distance transportation. The motor body and key connection positions are protected. We will take photos for retention to ensure that the product reaches the customer intact.

China Maohui Machinery offers other models of Schneider ILM0703 motors in stock. Please feel free to contact us for inquiries and purchases.

ILM0703P01A0000

ILM0703P01F0000

ILM0703P02A0000

ILM0703P02F0000

ILM0703P11A0000

ILM0703P11F0000

ILM0703P12A0000

ILM0703P12F0000

ILM0703P31A0000

ILM0703P31F0000

ILM0703P32A0000

ILM0703P32F0000
