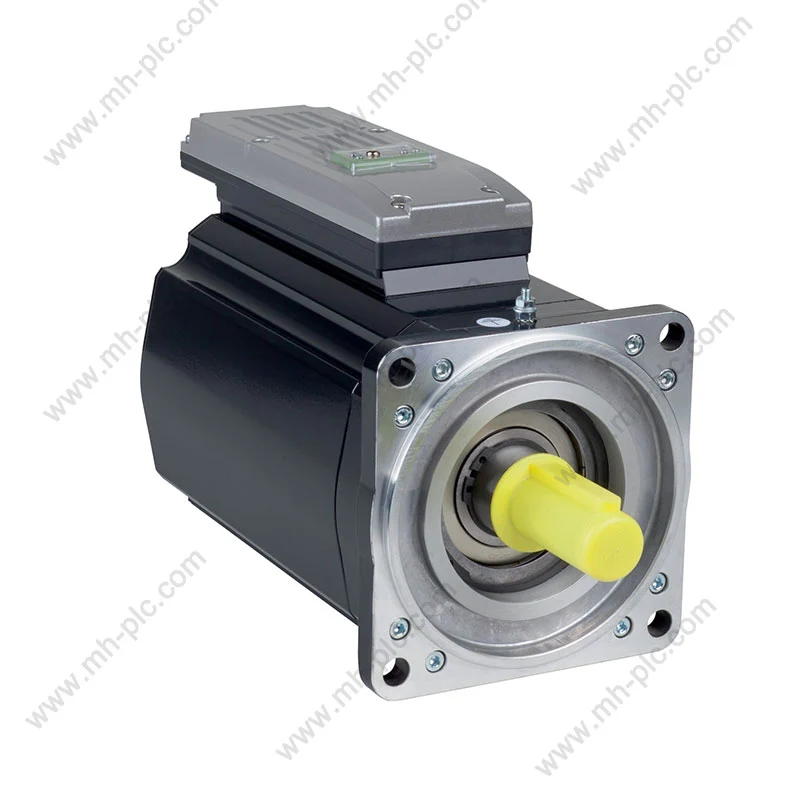

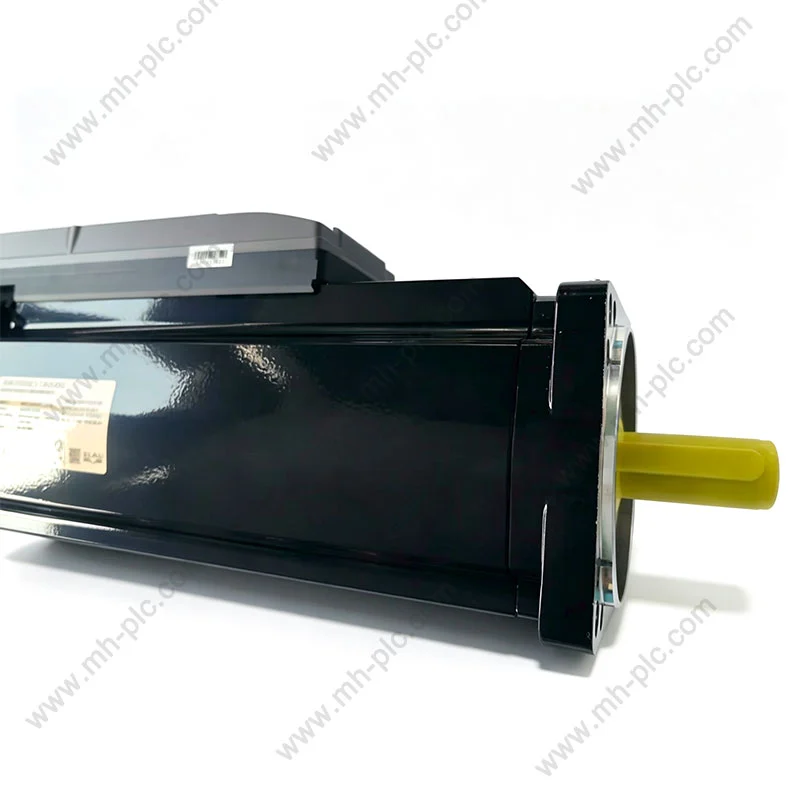

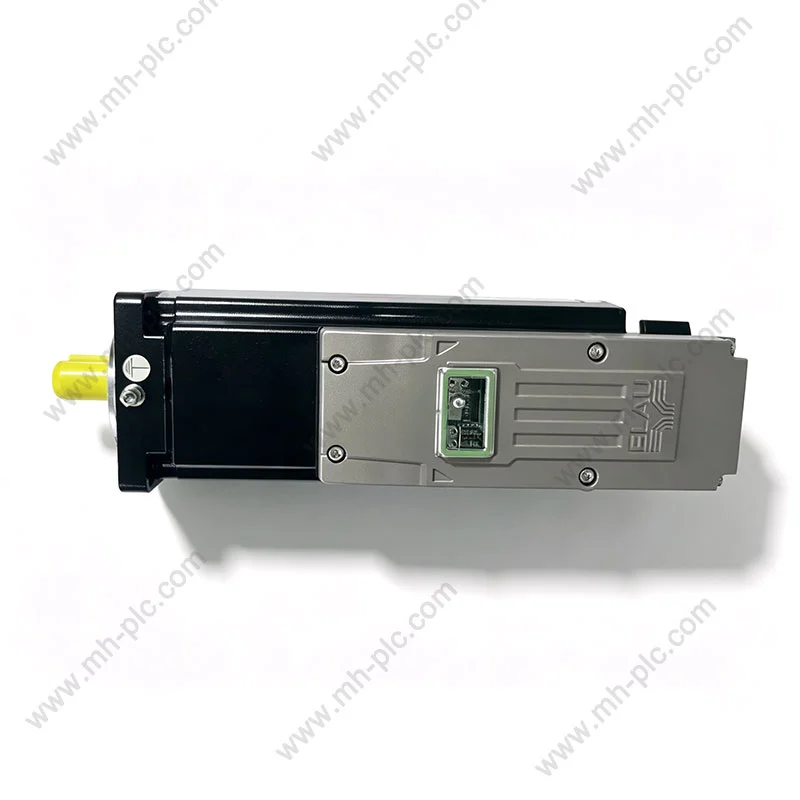

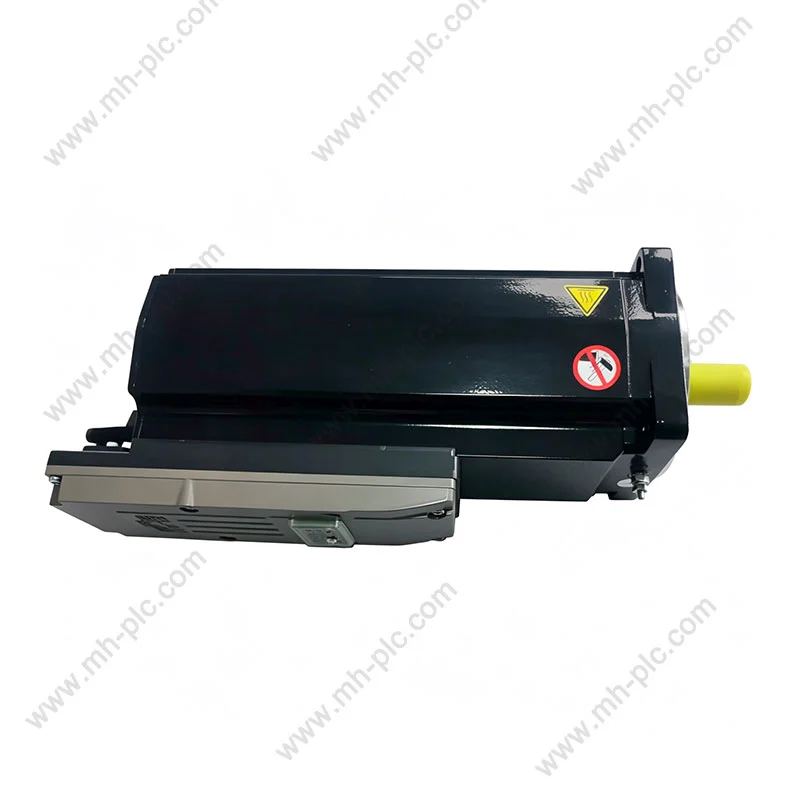

As a professional supplier from China Mao Hui Machinery recommends the Schneider ILM0702P01A0000, which integrates a drive power module, encoder and motor body. It eliminates the need for separate drivers and multiple sets of wiring, significantly simplifying the mechanical layout of the equipment and reducing wiring costs. It features a 6-high-density stator with a continuous locked-magnet torque of 1.7 Nm and a peak torque of 7.6 Nm (4 times overload), with fast and high-speed start-stop response capabilities. The single-turn absolute value encoder can permanently store the origin and does not require returning to zero position during power failure and restart, improving the startup efficiency of the production line. It is compatible with the LMC100/LMC200 full series of motion controllers and realizes stable multi-axis synchronization through the EtherCAT bus, mainly applied to small packaging, labeling, conveying and textile equipment.
| Parameter item | Numerical value |
| rated power | 720W (0.72kW) |
| rated speed | 6000 rpm |
| Continuous locked-rotor torque | 1.7 Nm |
| peak torque | 7.6 Nm |
| Rated continuous current | 2.5 A |
The Schneider ILM0702P01A0000 integrated servo motor embeds the driver electronic components directly into the motor housing, eliminating the need for separate driver installation space within the traditional control cabinet.
Distributed architecture design: The driver and the motor are combined into one unit, reducing the number of connection cables between the motor and the control cabinet.
Flat-axis without brake structure: The shaft end adopts a smooth flat-axis design, suitable for mechanical structures that operate continuously at high speed and do not require power-off maintenance.
High protection industrial design; to be able to resist dust and liquid splashing in the production site, the housing has excellent sealing performance.
Every drive device produced by Maohui undergoes strict European-style quality inspections before leaving the factory, ensuring compliance with internationally recognized industrial safety and electrical standards. It meets CE certification, UL certification, and RoHS environmental standards, featuring comprehensive overcurrent, overheating, and overvoltage protection mechanisms. Through strict vibration and environmental adaptability test, to ensure that in the run continuously for a long period of time is still to maintain high positioning accuracy and response speed.
In high-speed assembly, feeding, positioning and automated production, the equipment needs to quickly complete repetitive motion actions. The integrated servo structure can help machinery manufacturers optimize the equipment space and improve operational efficiency.
The Schneider ILM0702P01A0000 can be used as a motion execution unit in different automated processes. It includes multiple motion control units, such as conveying mechanisms, positioning mechanisms and assembly modules.
Multi-axis machinery has high requirements for equipment space and control coordination capabilities. Compact servo products can help the system design be more flexible.
In machine tool auxiliary equipment, automatic assembly equipment and intelligent manufacturing equipment, the overall operation reliability of the equipment.
It is a single-turn absolute value encoder, which can provide high-resolution position feedback signals. After power loss and restart, it can run precisely without the need to re-find the mechanical zero point.
In a single-turn (360°) range, the absolute position can be directly obtained. After power loss and restart, there is no need to re-find the mechanical zero point, greatly improving the reset and startup efficiency of the equipment.
(With the A0000 at the end) It is an unbraked version, suitable for non-vertical lifting, scenarios where no power outage is required to maintain torque for translation or rotation drives.
Heat dissipation and environment: Ensure there is no excessive dust accumulation on the motor surface and leave a good heat dissipation space around it.
Connector protection: Regularly check if the power and communication plugs are loose or if cutting fluid/water has seeped in.
Authentic product sources can be traced back
European original factory direct purchase, without middlemen; brand new, undamaged original equipment, disassembled machines fully tested as qualified products with dual inventories. Each unit comes with a unique original factory serial number. During storage, appearance, load aging, and encoder accuracy are subject to triple inspections, and test records are archived to prevent refurbished or counterfeit products.
Compact models have regular stock
The short-body model ILM0702 is regularly stocked in the warehouse. 1 unit can be dispatched within 24 hours, and bulk orders are dispatched within 3-5 days. It can provide stable backup when competitors are out of stock, suitable for replacing small equipment on urgent orders.
Professional export shock-proof packaging
Specialized anti-static bags for servos + thick wooden crates + moisture-proof desiccants to avoid damage to encoders due to vibration and moisture during air or sea transportation. The packaging complies with customs inspection standards of various countries.
China Maohui Machinery offers other models of Schneider ILM0702 motors in stock. Please feel free to contact us for inquiries and purchases.
ILM0702P01A0000
ILM0702P01F0000
ILM0702P02A0000
ILM0702P02F0000
ILM0702P11A0000
ILM0702P11F0000
ILM0702P12A0000
ILM0702P31A0000
ILM0702P31F0000
ILM0702P32A0000
ILM0702P32F0000
