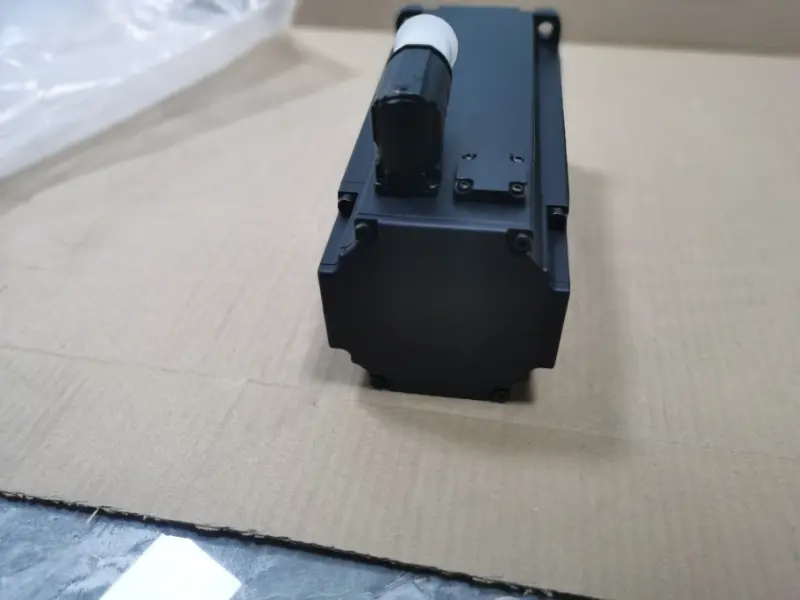

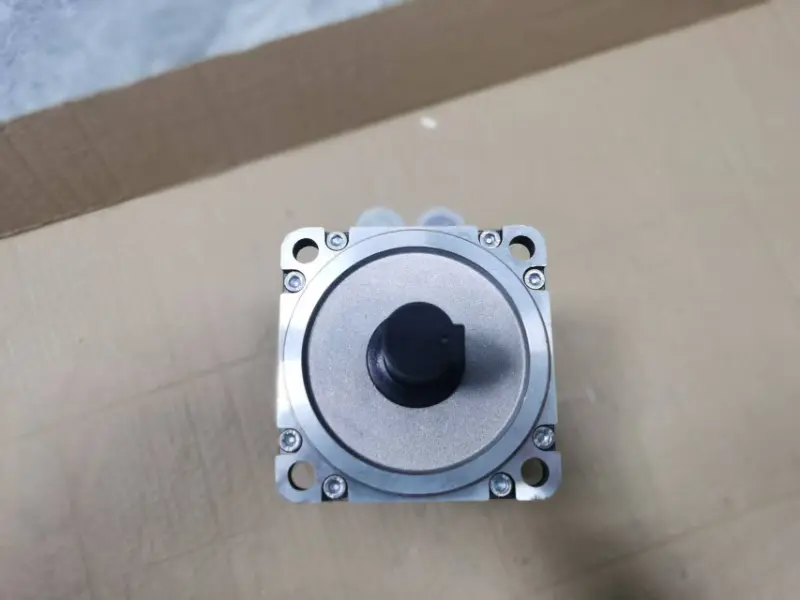

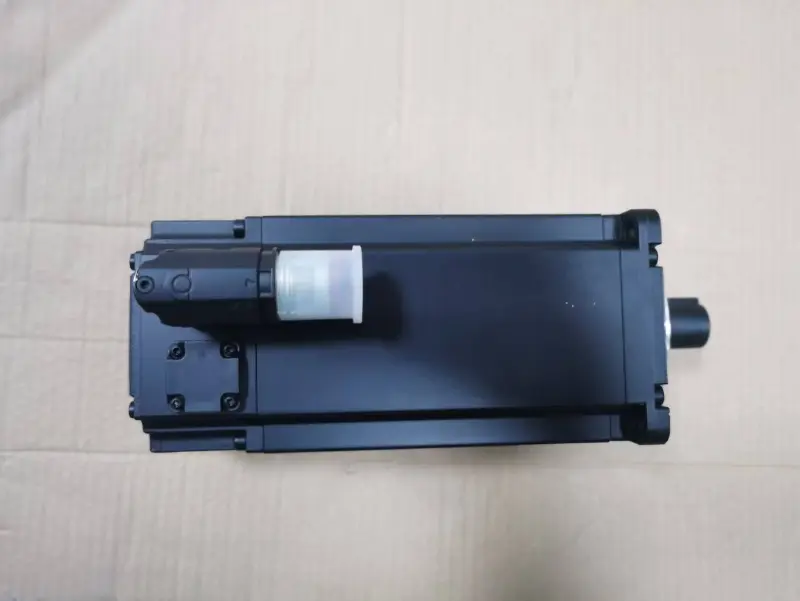

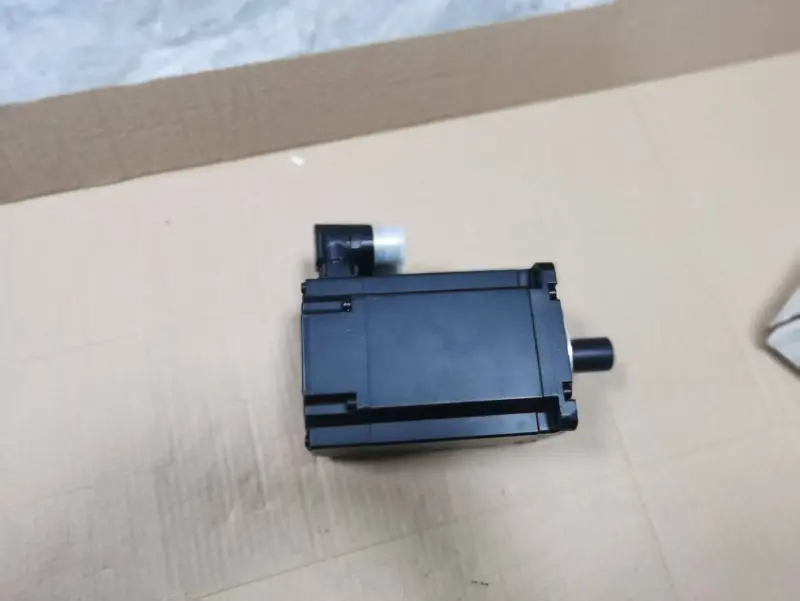

The B&R 8LSA45.E1022D600-3 model belongs to the 45 machine base specification. Its rated rotational speed is 3000 rpm. It is equipped with a 100mm installation flange. The encoder part adopts an absolute value feedback scheme. After factory calibration, it can be directly used in conjunction with the ACOPOS series drivers. Mao Hui, as a professional supplier, not only offers goods in stock but also has a wide range of available stock models. Welcome new customers to place orders.
| Parameters | Specifications |
| Product Model | B&R 8LSA45.E1022D600-3 |
| Series | 8LS Three-Phase Permanent Magnet Synchronous Servo Motor Series (8LSA-3 Generation) |
| Frame Size / Flange | 45 Frame / 100 mm Mounting Flange |
| Rated Speed | 3000 rpm |
| Power Supply Voltage | Three-phase 400 VAC |
| Feedback System | E10xx Absolute Value Encoder (Specific Resolution Depends on Version Manual) |
| Shaft End Type | Keyed Shaft (Specifications Based on D6xx Code) |
| Protection Level | IP64 |
| Insulation Class | F Class |
| Cooling Method | Self-Cooling (Natural Heat Dissipation) |
| Matching Driver | B&R ACOPOS / ACOPOS P3 Series |
1. Excellent after-sales service, with an engineering team proficient in multiple languages such as English, Spanish, and Russian. They can directly connect with overseas customers' on-site electricians to answer questions about electrical drawings and wiring.
2. Provide 1:1 exclusive technical support, covering wiring pin confirmation, guidance for importing driver configuration files (.X20), and troubleshooting of on-site fault codes.
3, the use of multilayer high density foaming filling and thick double corrugated carton (or export standard fumigated wooden box) packaging. Deep cooperation with DHL, FedEx, UPS and ocean freight forwarders to support door to door (DDP/DAP) delivery.
| Model | Explanation |
| 8LSA45.E1030D300-3 | Same frame size, but with different encoder and shaft end codes. Compatibility check required before ordering |
| 8LSA44.DA030D000-0 | 44 frame size, slightly lower torque, suitable for light-duty replacement evaluation |
| 8LSA55.R2045D100-3 | 55 frame size, heavy-duty applications, resolver feedback, resistant to high temperature and vibration |
| 8LSM Series | B&R’s new-generation synchronous servo motor series, recommended for evaluation in new project selections |
In the packaging and filling fields, B&R 8LSA45.E1022D600-3 is used for the drive position of high-speed automated packaging equipment, the transmission shaft of ultra-high-speed labeling machines, and the core motion control part of the precision filling assembly line.
In the field of electronic manufacturing, it is suitable for high-speed placement equipment of electronic components, high-speed precision detection devices and automated testing fixtures, meeting the process requirements of small stroke, high frequency and high-precision reciprocating motion.
In the field of material handling and robotic arms, high-speed lightweight industrial robotic arms, high-frequency transplanting equipment, and automated rapid loading and unloading systems can achieve rapid start and stop without sacrificing positioning quality by virtue of their low inertia characteristics.
In the field of machine tool processing, the feed control of small high-speed precision CNC machine tools, high-speed feed system and precision linkage axis equipment.
B&R 8LSA45.E1022D600-3 is a high-end high-speed low-inertia high-dynamic servo motor, belonging to the Bechtel 8LSA45 precision servo series. Focusing on 6000rpm ultra-high speed, high-pressure adaptability, and high-frequency durability performance, it is dedicated to high-end precision automation working conditions with high rhythm, high efficiency, and high precision. Inspection process: power-on function test, encoder accuracy verification, rated load test, long-term aging operation, fault parameter reset. Through comprehensive screening, hidden defects and faulty equipment returned to the factory are completely eliminated. The delivered performance is close to the new standard. After installation, the equipment can be directly put into production use.
The EnDat absolute encoder does not require a battery. The position of multiple turns will still be maintained after power loss. During the first debugging, perform an encoder identification and reference point setting as per the driver's requirements. After that, there is no need for zero reset when the machine is powered on daily.
Class F insulation allows for a higher temperature rise. The surface temperature of the casing ≤ 80℃ is generally normal. In the case of overheating, check whether the blockage, ambient temperature and heat dissipation conditions, servo gain parameters match.
OK. The ACOPOS series drives and their accompanying power/fault cables from B&R can be priced as a complete system package. This ensures better compatibility during commissioning.
