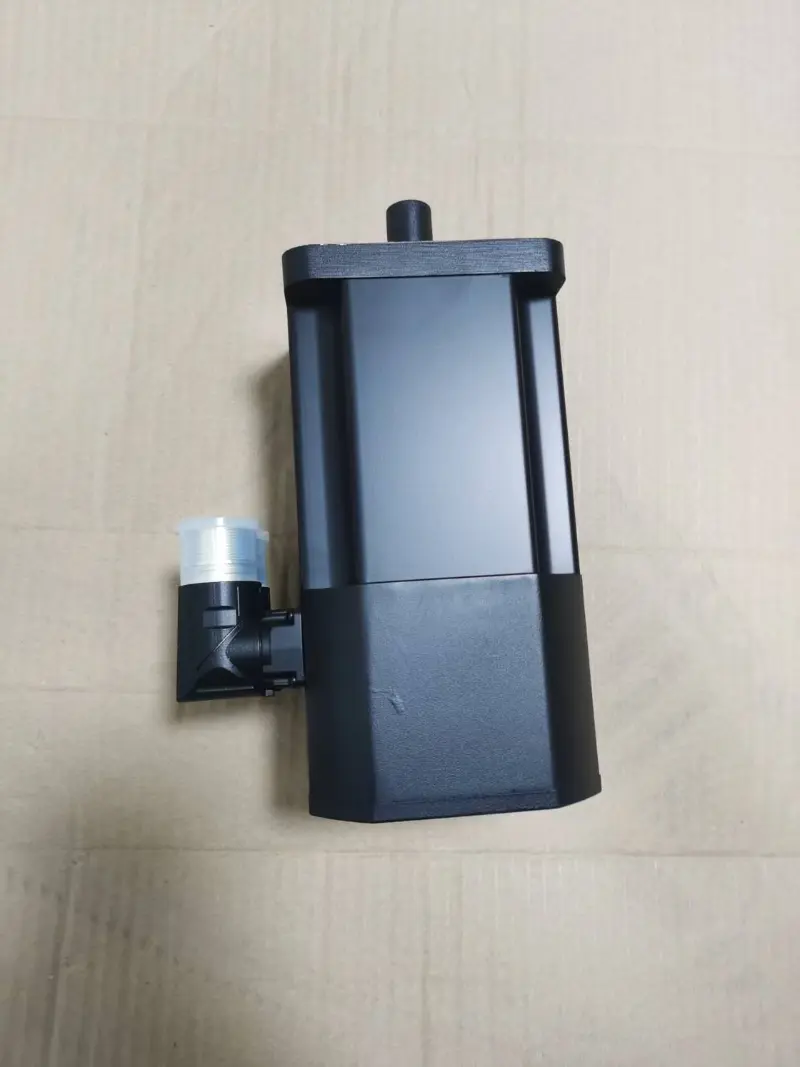

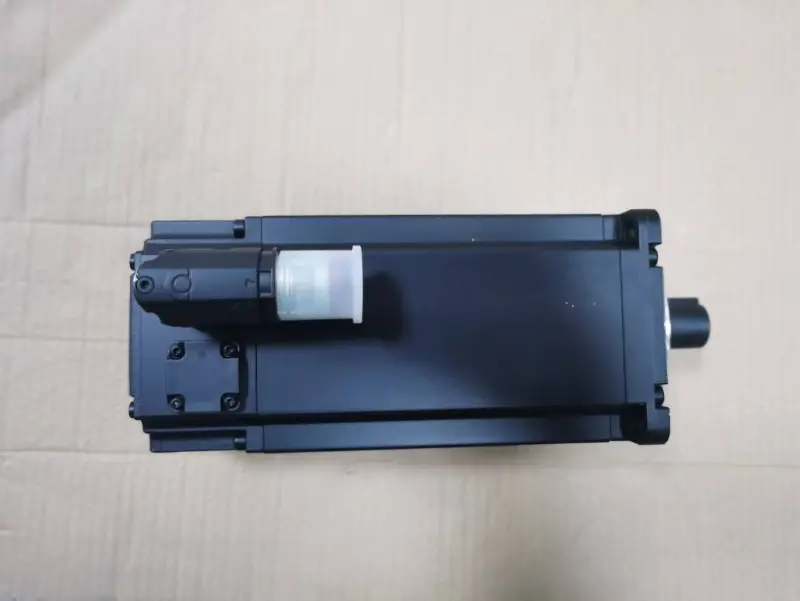

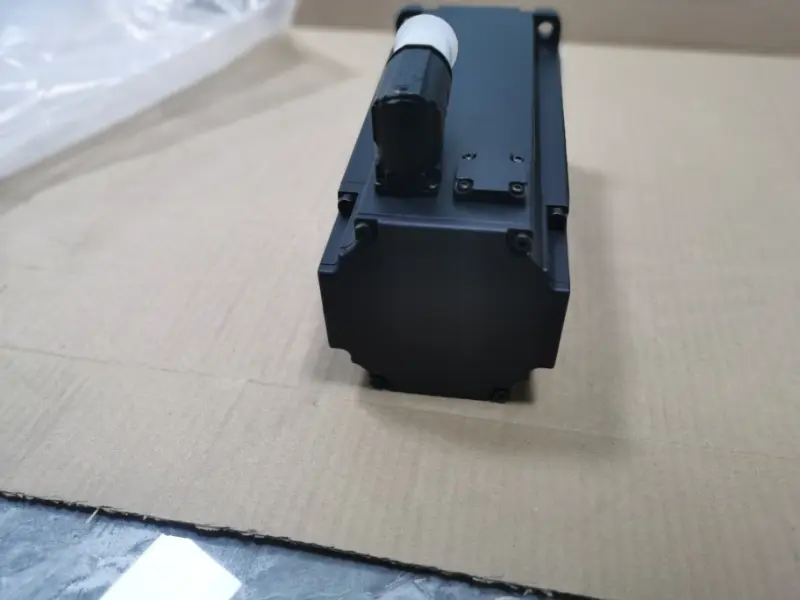

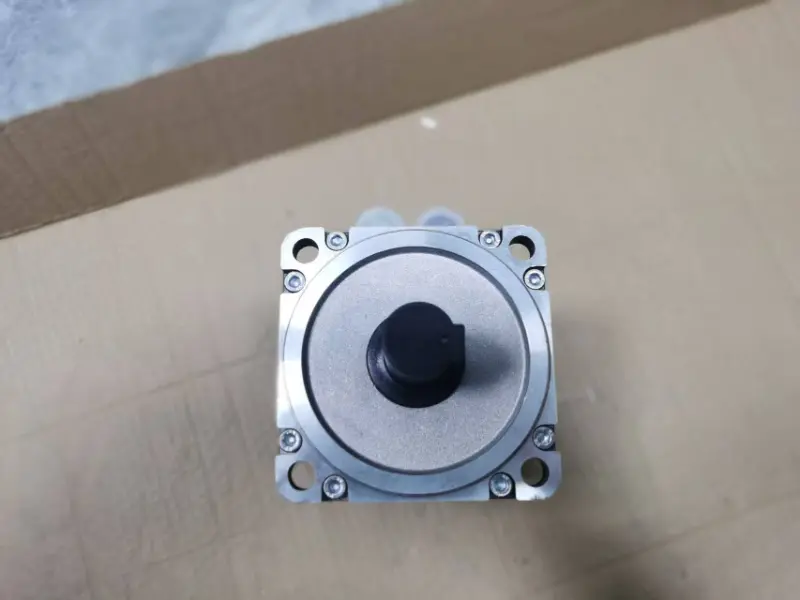

B&R 8LSA37.DA030S000-3

The B&R 8LSA37.DA030S000-3 is widely used in mainstream and high-end automated scenarios such as automated packaging, electronic assembly, intelligent mechanical hands, and precision detection equipment. The core advantages of the it include low motor energy consumption, superior dynamic performance, perfect load balancing capacity, response speed and operational stability. It can adapt to complex industrial environments such as dust, humidity, and temperature fluctuations for a long time, with extremely low operation and maintenance costs and a high fault tolerance rate during operation. It is compatible with the vast majority of small and medium-sized precision automation equipment. As a supplier, we have both in-stock products and a wide range of models.

Specification Parameter Table

Application program

Packaging and labeling equipment:

 drive shaft for belt feeding, sealed cutting knife shaft, and automatic filling and quantitative feeding device for automatic filling machine.

Electronic and semiconductor manufacturing:

 B&R 8LSA37.DA030S000-3 is used as an auxiliary shaft for automatic surface mount machines, PCB drilling feeding, and automatic test fixture positioning.

Light industry CNC and textile equipment:

Auxiliary shafts for small CNC engraving machines, tension control shafts for automated sewing equipment, and color position correction shafts for printing.

Robotics and automated warehousing:

Joint drive shafts for SCARA robots, lifting mechanisms for AGVs, and automated roller conveyor lines.

Quality Assurance

Stator automatic winding and vacuum impregnation: The stator windings are completed using an automatic winding machine, and then they enter the vacuum pressure impregnation (VPI) drying oven. The insulation strength reaches industry standards.

Rotor permanent magnet assembly and dynamic balance correction: Precisely attach the rare earth magnets to the rotor core, and perform multi-interface weight reduction correction using a high-precision dynamic balance machine, controlling the residual imbalance within the microgram range.

Overall assembly and sealing test: Assembly of the front and rear end covers, bearings and encoders, and conduct air tightness pressure drop tests on the housing and wiring ports to meet the IP64 protection requirements.

Electrical performance and withstand voltage aging test before leaving the factory: It must pass the insulation withstand voltage test (Hi-Pot), back electromotive force waveform test, and operate continuously under rated load for aging. Monitor the temperature rise curve and noise decibel.

Logistics and Freight Assurance

Global Distribution Network: Deeply collaborate with DHL, FedEx, UPS and experienced international shipping freight forwarders to offer DDP/DAP door-to-door transportation services

Express delivery:

 The warehouse has sufficient stock. After order confirmation, the outbound testing and packaging will be completed within 24 hours

Efficient Timeliness: Delivery to major industrial cities in Europe and America is completed within 3-5 working days; delivery to Southeast Asia is within 2-4 working days

Compliance Assurance: Maohui provides complete customs export clearance documents

FAQ：

What are the differences between B&R 8LSA37.DA030S000-3 and 8LSA37.DA060S000-3?

Lies in the design of the rated speed and winding. DA030S000-3 of the rated speed is 3000 RPM, relatively higher (about 3.3 Nm) rated torque, suitable for pay more attention to the condition of the continuous load and torque output, While DA060S000-3 rated speed is 6000 RPM, is suitable for higher speed requirements of light load positioning shaft.

Whether with the Brake (Brake)? If it is vertical axis can be used?

Answer: the model of S000 representative without the Brake (No Brake). If your device used in vertical shaft or tilted institutions are susceptible to gravity drop, suggestion choice with 24 VDC to keep the Brake (Holding Brake) models (such as with according/S200 suffix), there was an gravity fall in case of power cuts.

Can you match the use of third party brand servo driver?

For Calais built-in electronic nameplate of the motor drive with exclusive control algorithm, priority bei Calais ACOPOS series drives use collocation, if forced to access third-party drives, possible EnDat agreement unable to read or motor running fever jitter, and so on and so forth.

The main differences lie in the rated speed and winding design. The rated speed of DA030S000-3 is 3000 rpm, and its rated torque is relatively higher (about 3.3 Nm), making it suitable for applications that focus on continuous load and torque output; while DA060S000-3 has a rated speed of 6000 rpm, which is suitable for light-load positioning axes with higher speed requirements.

Does it have a brake? Can it be used for vertical shafts?

Answer: The S000 in the model indicates no brake (No Brake). If your equipment is used in vertical lifting shafts or inclined mechanisms that are prone to gravitational drop, it is recommended to choose a model with 24VDC holding brake (Holding Brake) (such as those with S100/S200 suffixes) to prevent gravitational drop in case of power failure.

Can it be used with third-party servo drives?

Because the Bechtel drive incorporates the electronic nameplate and exclusive control algorithm of this motor, it is recommended to use the Bechtel ACOPOS series drives. If a third-party drive is forcibly connected, issues such as EnDat protocol failure to read or motor overheating and shaking may occur.

Personnel Advantage

Mao Hui's technical team is composed of engineers with experience in industrial control debugging. They are proficient in multiple languages such as English, Spanish, and Russian, and possess excellent technical communication skills. Be capable of directly understanding the electrical drawings at overseas customer sites and provide technical guidance on wiring, pin definitions, and the import of driver parameter configuration files (.x20).
