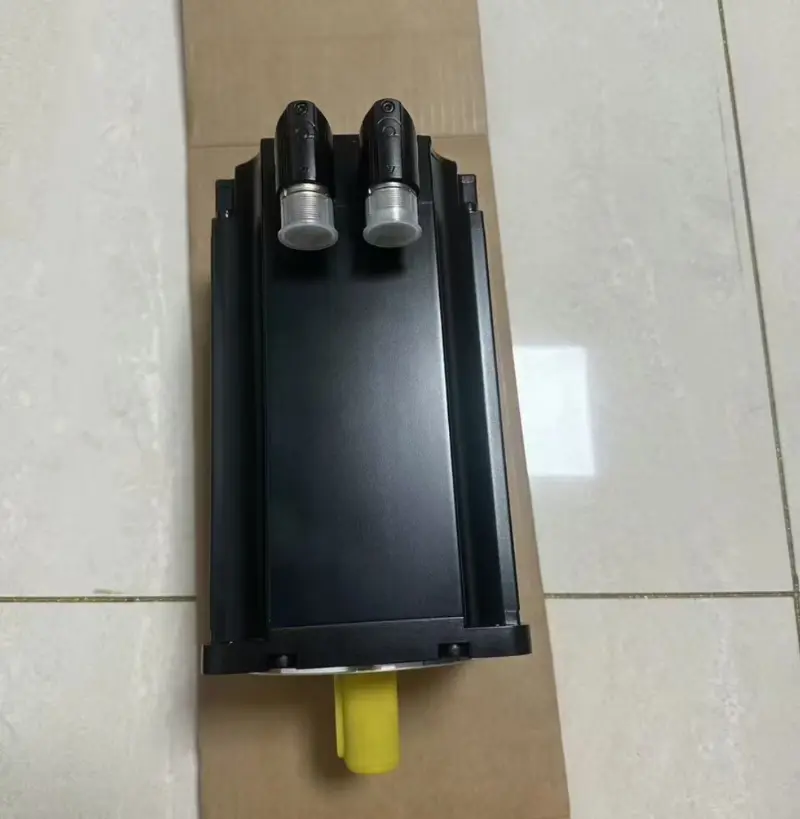

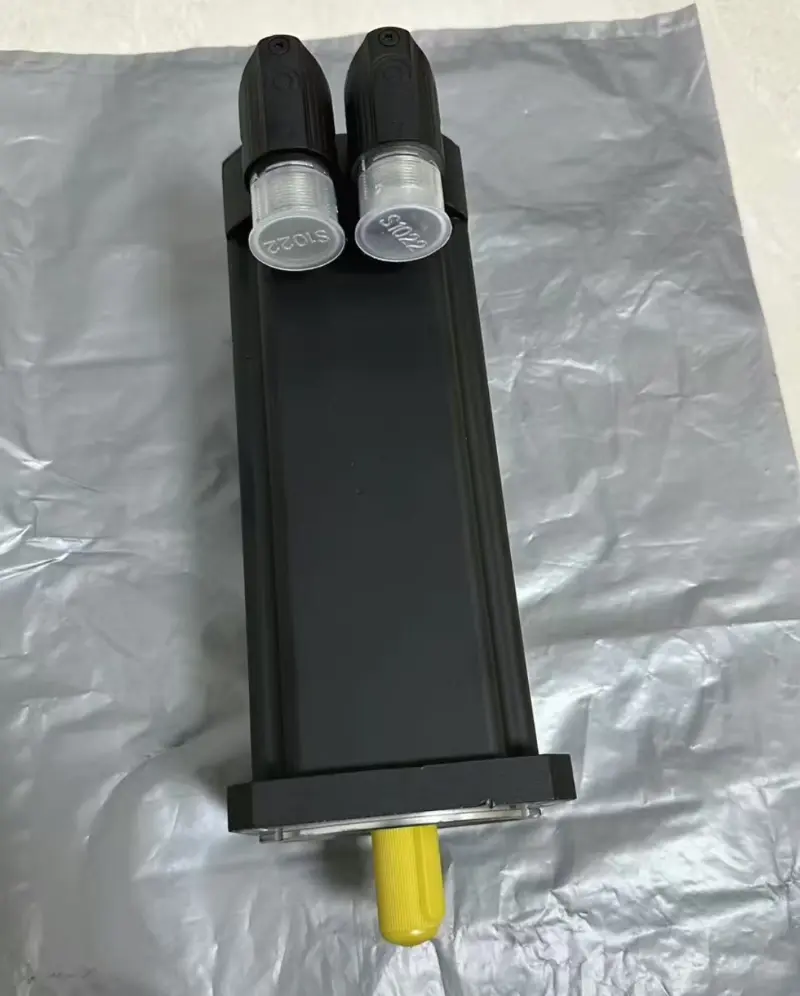

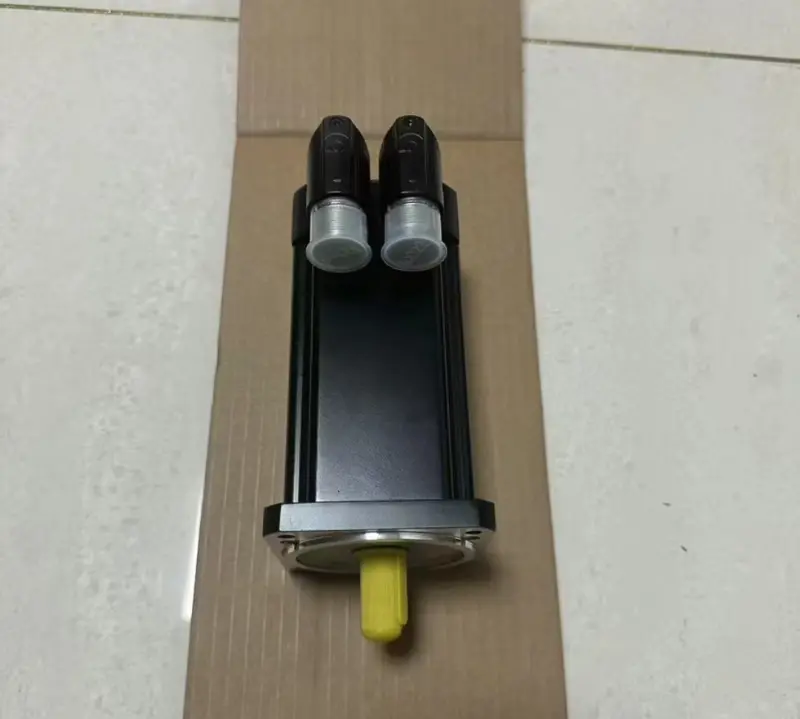

B&R 8LSA35.DA030S200-0

As a supplier, Maohui offers the B&R 8LSA35.DA030S200-0 product in stock. The enclosure has an IP64 protection rating, which prevents solid particles from the outside and splashing water droplets from all directions from entering the motor interior. The windings are made of F-class high-temperature resistant insulation material, allowing the motor to operate for a long time at an internal working temperature of up to 140° C. It can maintain normal insulation resistance and electrical safety even in workshops with continuous heavy loads or large fluctuations in ambient temperature.

Specification Parameter Table

Parameter NameTechnical Specifications / Corresponding SpecificationsProduct Series8LSA Compact Synchronous Servo Motor SeriesRated Speed3000 rpmRated Torque2.1 NmPole Number4 PolesPower Supply VoltageThree-phase 400 VACProtection GradeIP64 (Compliant with IEC 60034-5)Insulation GradeF ClassFeedback SystemAbsolute Value EncoderInstallation MethodFlange Installation (IM B5 / IM V1)

Product performance

The B&R 8LSA35.DA030S200-0 can continuously and stably output a rated torque of 2.1 Nm at the rated speed of 3000 rpm. 4 to the design of a balance of the high speed response and low speed running stability, to avoid the phenomenon of low frequency resonance. The absolute value encoder integrated inside the motor can retain position data after the system is powered off, and there is no need to re-perform the zero-return action upon startup, which improves the single-hour output efficiency of the automated production line.

Output Shaft and end cover: standard Smooth Shaft with precision Machined flange, the front bearing adopts double-sided sealed high-speed bearing to withstand large radial and axial loads.

Stator and winding: stacked silicon steel sheet with high thermal conductivity, matched with F grade insulated copper wire with uniform paint, to minimize Eddy Current losses.

Rotor structure： B&R 8LSA35.DA030S200-0 adopts a low rotational inertia design. The surface-mounted rare earth permanent magnets undergo strict dynamic balance correction to ensure zero abnormal vibrations during high-speed rotation.

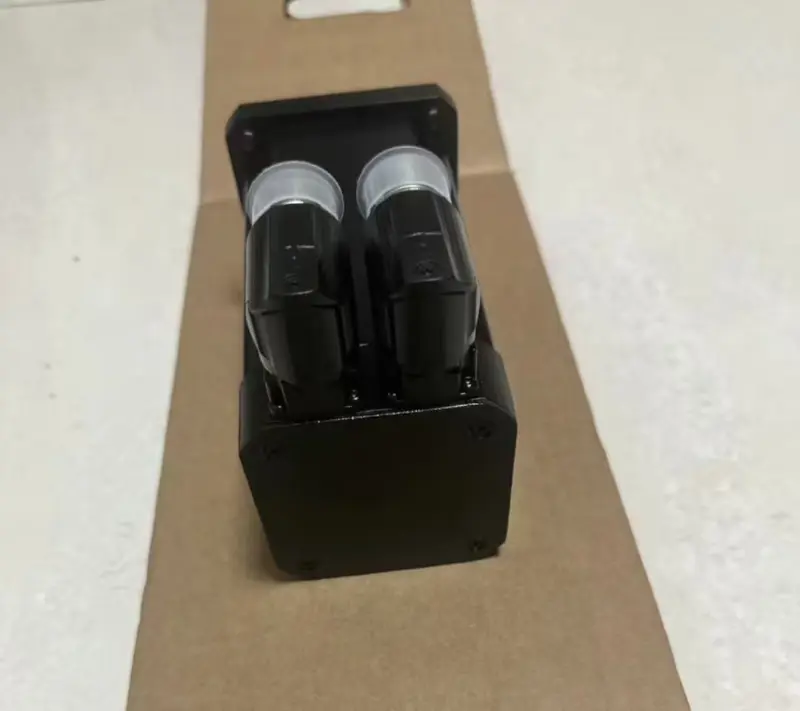

Feedback and electrical connection: absolute value encoder is built in the back cover, and the output port is equipped with industrial grade metal rotating heavy load socket, supporting 360 degrees flexible adjustment of the line direction.

Application scenario

Packaging and filling equipment: Drive shafts for high-speed labeling machines, fixed-length cutting shafts for sealing machines, and multi-head synchronous quantitative feeding for liquid filling machines.

Electronics and semiconductor manufacturing: B&R 8LSA35.DA030S200-0 is used for auxiliary conveying in automatic surface mount technology (SMT) machines, auxiliary feeding in PCB drilling machines, and rapid clamping and positioning of automated test fixtures.

Light industry numerical control and textile machinery: Auxiliary feed axes for small numerical control milling machines, thread tension control for automatic sewing equipment, and micro-adjustment axes for color matching in printing machines.

Intelligent logistics and robotics: Drum drive for lightweight SCARA robots, AGV lifting mechanisms, and roller drives for automated warehouse sorting lines.

Reference for related models and series

8LSA34 Series: 8LSA34.R0022D000-0 (Rated rotational speed 2200 rpm, resolver feedback)

8LSA43 Series: 8LSA43.8LSA43 series: 8LSA43.R0022D100-0 (rated torque 4.0Nm, higher load capacity)

8LSA55 Series: 8LSA55.DA030S100-3 (Rated torque 12.5 Nm, suitable for medium to heavy-duty axles)

8LSA75 Series: 8LSA75.DB030S100-3 (high power model, rated torque 30 Nm)

Why choose Maohui?

Mao Hui's technical team has over 10 years of on-site automatic control engineering service experience. We promise that all B&R 8LSA35.DA030S200-0 products sold are genuine from the original factory. Complete factory code and serial number are provided with each shipment, allowing customers to conduct original factory traceability inquiries. We not only sell components but also have assisted many manufacturing plants in Southeast Asia and Europe in handling the replacement and debugging of old B&R system motors. Our engineers are well-versed in the parameter setting details of the 8LSA series when matching different generations of ACOPOS drivers. At the same time, we have established long-term and fixed supply relationships with many industrial equipment maintenance providers (MRO) and system integrators both domestically and internationally. We adhere to a transparent transaction process. Before placing an order, buyers can request us to provide physical photos before shipment, details of the nameplate, power-on test videos, and the original factory packaging seal. All sold products enjoy a 12-month warranty period and provide customs export compliance documents to maximize the protection of overseas buyers' funds and procurement security.
