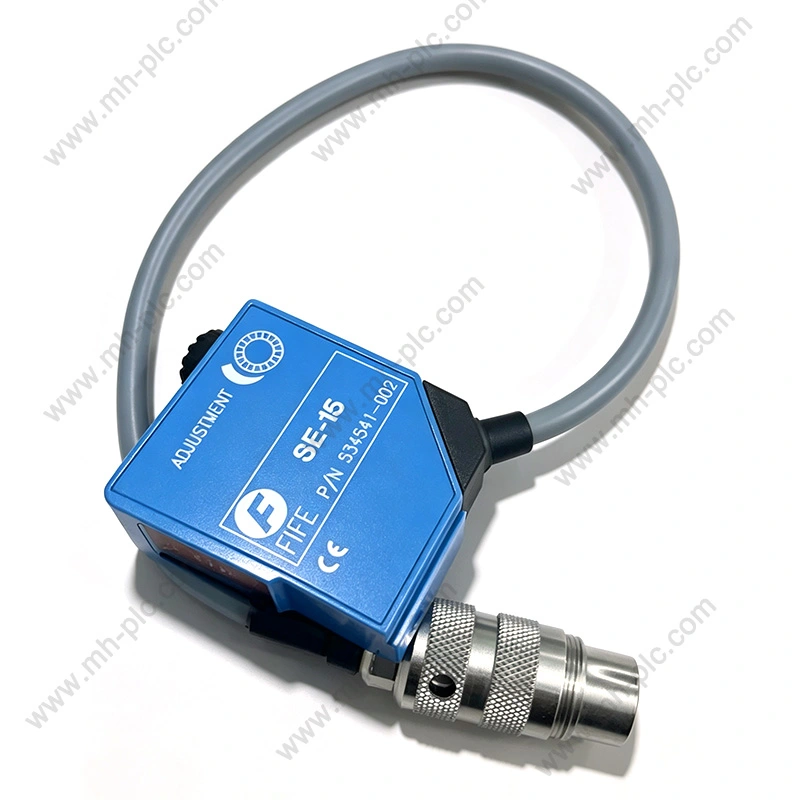

As a professional supplier in China, Mao Hui offer the Maxcess FIFE SE-15 Visible Light Sensor with available stock, which is highly suitable for guiding the edges of transparent, opaque or highly reflective materials. It uses a red light visible beam, transmitted and received through a coaxial system. Part of the light is blocked by the edge of the measured material, and the rest of the light is reflected to a reflector mounted behind the tape.
The reflected light is received and filtered out from the ambient light, thereby accurately determining the position of the tape edge. The use of red light visibility makes the SE-15 installation simple. Its built-in amplifier and LED indicator light facilitate the guidance and adjustment of the sensor, and are particularly suitable for operations when dealing with transparent materials.
| Peso | 213 g |
| Señal de salida | de 0 a 10 mA |
| Señal de salida | de 0 a 10 mA |
| Linealidad | Error nominal máximo 2 % |
| Temperatura de uso | 5 °- 60 °C |
| Cambio de plano | Error nominal máximo 1 % |
| Indice de protección | IP 65 |
| Protección electrostática | Según norma IEC 801-2 |
| Tensión | de + 10 Vcc a + 14 Vcc |
| Compensado en luz ambiante | Fuente de luz modulada |
Due to its compact and lightweight design, the Maxcess FIFE SE-15 Visible Light Sensor can be installed in very narrow spaces.
· Utilizes visible red light
· Not affected by ambient light
· Not affected by reflected light from tapes
It is not sensitive to reflected light, so it can be used for detecting highly reflective or transparent materials.
Integrated amplification calibration
· Due to its excellent linear characteristics, it is particularly suitable for unwinding and winding applications.
· The detected tape can be at any position between the sensor and the reflector.
A: It supports opaque, semi-transparent and reflective materials; films, non-woven fabrics, paper, aluminum foil and coated materials can all be detected.
A: 25mm to 1000mm (1 inch to 39 inches). It is flexible to install and suitable for narrow rack spaces.
A: The built-in light source filtering algorithm can filter the environmental light and flickering lights in the workshop, reducing the possibility of false triggering.
A: Standard industrial temperature: 0℃ to 50℃. Avoid high-temperature baking and continuous water spraying.
Dirty or scratched reflective plate → Clean or replace the reflective plate
Lens dust on the sensor → Use a dust-free soft cloth to wipe the lens
Sensor not aligned with the reflective plate → Re-calibrate the light path
Excessive rolling vibration → Install transition rollers
A: Both original and new equipment come with a warranty; regular inventory can be shipped quickly, and the delivery cycle for custom orders can be discussed separately.
During the installation of Maxcess FIFE SE-15 Visible Light Sensor, ensure that the optical path is perpendicular to the reflector to avoid rolling folds and severe edge vibrations. Note that the cable laying should be far away from the power line of the inverter and motor to effectively reduce electromagnetic interference.
Mao Hui meets customers' demands for products. We have a complete range of inventory models, covering many mainstream industrial control brands. We offer highly competitive and reasonable prices, a strong ability to integrate scarce resources, and a stable supply of some discontinued models, solving customers' spare parts problems. In terms of service, we have established an efficient and fast response mechanism, and promise to professionally answer customer inquiries within 12 hours.
China Maohui Machinery offers other models of maxcess SE-15 sensor in stock. Please feel free to contact us for inquiries and purchases.
DSE-15
SE-31
SE-44R
DSE-22
DSE-11
SE-38
SE-37
SE-22
SE-26ASE-42
