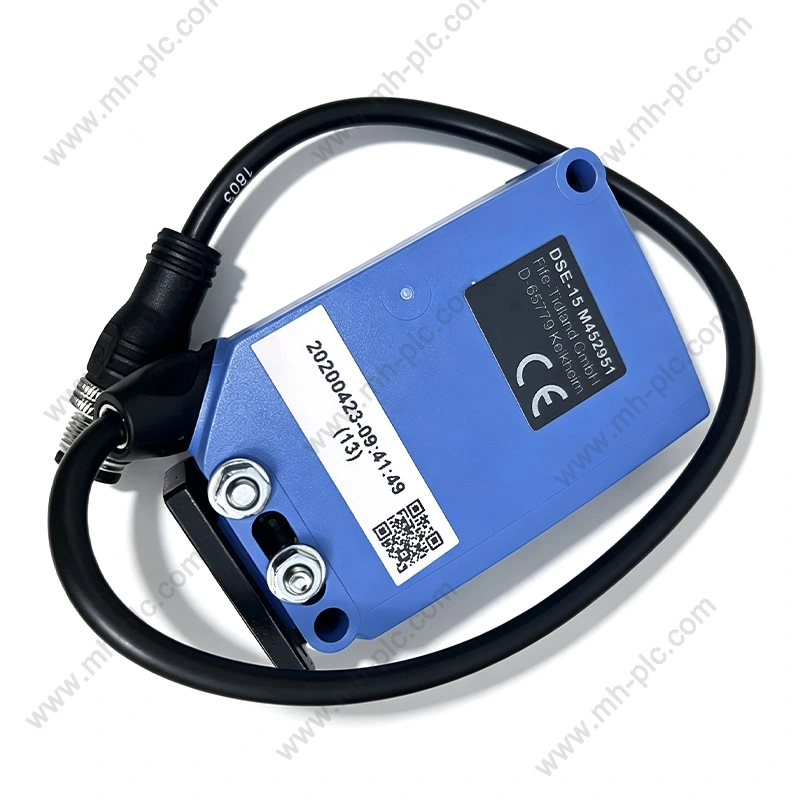

Maxcess FIFE DSE-15 Visible Light Sensor

The Maxcess FIFE DSE-15 Visible Light Sensor provided by Mao Hui in China with available stock is used to guide the edges of opaque, transparent or highly reflective materials. With its compact size, it is insensitive to ambient light and reflections, making it an ideal choice for applications requiring high-precision edge guidance in limited spaces.

It emits and receives light in a coaxial manner using a red light visible beam. Some of the light is blocked by the edge of the measured material, while the rest is reflected onto a reflector installed behind the tape. The reflected light is received and filtered out from the ambient light, accurately determining the position of the tape edge. Its built-in amplifier and LED indicator light facilitate easy guidance and adjustment of the sensor, suitable for measuring transparent materials.

Model parameters

Features and Advantages

The Maxcess FIFE DSE-15 Visible Light Sensor is designed with a compact and lightweight structure, making it suitable for installation in industrial environments with limited space and meeting the detection requirements in narrow areas. It employs visible red light detection technology, featuring excellent resistance to environmental light interference and not being affected by the reflected light from the tape surface. It can stably detect high reflectivity or transparent materials. Integrated amplification and calibration functions, excellent linear performance. The tested tape does not need to be fixed at a specific position and can be reliably detected at any position between the sensor and the reflector.

Why choose China Maohui to purchase sensors?

Supply: New, original, genuine products. Warehouse has stock. Physical photos can be provided.

Testing: Pre-delivery power-on test to ensure normal operation of the equipment.

Delivery time: Regular orders will be dispatched within 3-7 working days.

Guarantee: Standard warranty service. Technical support team provides remote assistance for debugging.

Supplementary parts: Long-term supply of maxcess full series of servo motors, drivers, and encoder spare parts.

FAQ

Q2: Which materials can the Maxcess FIFE DSE-15 Visible Light Sensor detect?

A: It supports opaque, semi-transparent, and reflective materials; films, non-woven fabrics, paper, aluminum foil, and coated materials can all be detected.

Q3: What is the effective distance between the sensor and the reflective plate?

A: 25mm to 1000mm (1 inch to 39 inches). It is flexible to install and suitable for narrow rack spaces.

Q4: How is the environmental light resistance?

A: Built-in light source filtering algorithm can filter out ambient light and flashing lights in the workshop, reducing the possibility of false triggering.

Q5: What is the working temperature range?

A: Standard industrial temperature: 41° - 140° F. Avoid high-temperature baking and continuous water spray.

Q6: Common faults: signal jitter, unstable correction?

Dirty or scratched reflective plate → Clean or replace the reflective plate

Dust accumulation on the sensor lens → Wipe the lens with a dust-free soft cloth

Sensor not aligned with the reflective plate → Re-calibrate the light path

Excessive roll vibration → Add transition rollers

Q7: Is the new one guaranteed? How long is the delivery cycle?

A: The original and new ones are provided with a warranty; regular stock can be shipped quickly, and the delivery cycle for custom orders can be separately inquired.

Q8: What are the installation precautions?

The light path should be perpendicular to the reflective plate;

Avoid roll wrinkles and intense edge shaking;

The cable should be away from the power lines of the frequency converter and motor to reduce interference

China Maohui Machinery offers other models of maxcess sensor in stock. Please feel free to contact us for inquiries and purchases.

DSE-15
SE-31
SE-44R
DSE-22
DSE-11
SE-38
SE-37
SE-22
SE-26A
SE-42
