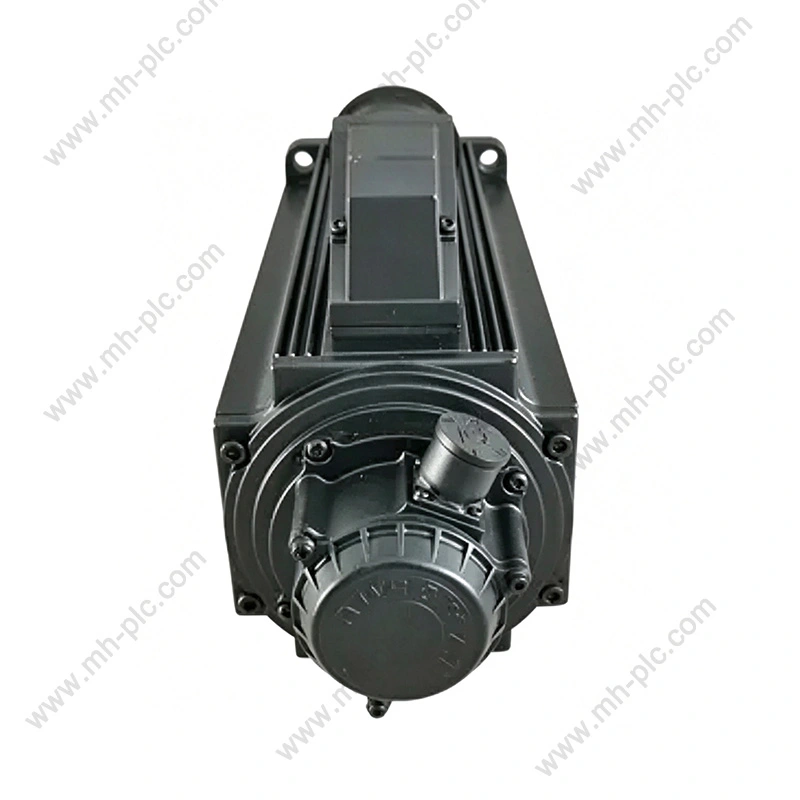

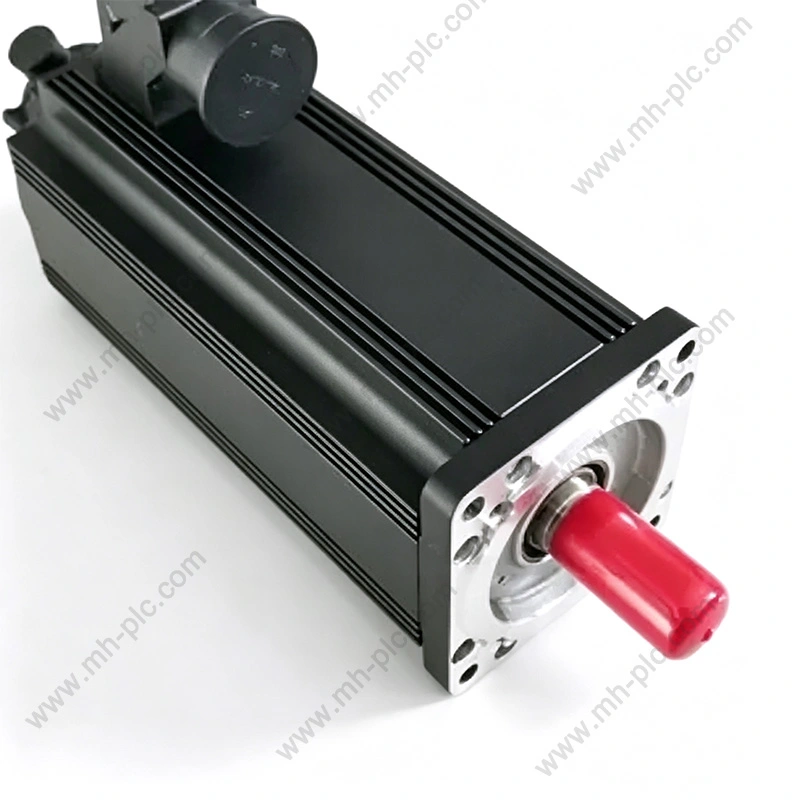

Rexroth MS2N05-C0BNN-BMDG1-NNNNN-NN

As a supplier from China, Mao Hui exclusively supplies Rexroth MS2N05-C0BNN-BMDG1-NNNNN-NN compact synchronous servo motors with a 98mm standard housing, natural air-cooling structure, rated rotational speed of 6000 rpm, continuous torque ranging from 4.45 to 9.35 Nm, and peak torque up to 22.6 Nm.

It is equipped with a 20-bit high-precision multi-turn absolute encoder, standard 10Nm power-off holding brake, and a protection level of IP65. It adopts a single-cable integrated interface, with simple wiring and support for the longest 75-meter wiring, featuring a low-inertia rotor design that responds quickly and provides precise positioning. It is compatible with 230/400V industrial voltage and is compatible with Rexroth ctrlX DRIVE system.

Core technical specification parameters

Product application fields

Precision CNC and cutting equipment

Suitable for the feed axes and auxiliary drives of CNC machines, meeting the high trajectory following accuracy and stable torque control requirements during high-speed cutting processes.

Packaging and automated printing

In high-speed packaging machines, labeling machines, and multi-color printing equipment, achieve high-precision speed synchronization between multiple axes and dynamic electronic gear control.

Electronic and 3C manufacturing

Rexroth MS2N05-C0BNN-BMDG1-NNNNN-NN is specially designed for high-speed dispensing, fine soldering, and component assembly equipment, achieving millisecond-level frequent rapid start and stop with its low inertia design.

Lithium battery and new energy production lines

Used in lithium battery sheet winding, stacking machines, and module assembly equipment, ensuring stable tension and high repeat positioning accuracy during continuous high-speed operation.

Intelligent logistics and handling robotic arms

As the core power source for multi-joint robots, SCARA robots, and high-speed gantry robotic arms, it provides a powerful peak torque output (up to 22.6 Nm).

Laser processing and visual inspection

On laser cutting machines and automated optical inspection (AOI) platforms, cooperate with Hiperface® encoders to achieve micron-level position feedback and smooth operation.

Control Matching

The Rexroth MS2N05-C0BNN-BMDG1-NNNNN-NN model is mainly compatible with the Bosch Rexroth ctrlX DRIVE drive system. For equipment adopting the Rexroth automation architecture, it can provide excellent system compatibility, helping engineers reduce the workload of equipment modification. It can achieve:

Precise position control;

Stable speed control;

High dynamic response operation;

Multi-axis coordinated movement.

Q&A

1. Which drive systems are compatible with Rexroth MS2N05-C0BNN-BMDG1-NNNNN-NN servo motor?

The original model is compatible with Bosch Rexroth ctrlX DRIVE series drives. The model is perfectly matched and can be directly used in conjunction without the need for parameter adaptation. It is also compatible with mainstream industrial automation control systems, making it highly adaptable.

2. What is the maximum wiring distance supported by the motor? What are the wiring requirements?

The standard comes with a single-cable integrated interface. The standard maximum wiring distance can reach 75 meters. The wiring is simple, which can effectively reduce the messy wiring problem in the cabinet. During the wiring process, it avoids interference between high-voltage cables and pipes, ensuring stable signals and no data loss.
